RS485 output oil-in-water real-time monitoring sensor with grade IP68

Name: RS485 output oilinwater realtime monitoring sensor with grade IP68
Brand: Kacise
Price: 900.00 USD

China RS485 output oil-in-water real-time monitoring sensor with grade IP68 wholesale

Place of Origin : Shaanxi, China

Brand Name : Kacise

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability : 100 Piece/Pieces per Month

Price : $900.00 - $1,500.00/pieces

Model Number : KWS-1000

Certification : CE

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Product name : Water Quality Sensor KWS-1000 Online Oil-In-Water Sensor

Measuring Range : 0-50ppm or 0-0.40FLU

Principle : fluorescence method

Resolution : 0.01ppm

Port : Xi'an or other

Contact Now

RS485 Oil In Water Sensor for Sea Water

Introduction

The Kacise online water sensor employs the principle of fluorescence. When contrasted with several frequently utilized methods, the fluorescence method stands out as being significantly more efficient and swifter. Not only that, it offers the capability of being monitored online in real time, providing continuous and up-to-the-minute data. The sensor demonstrates superior repeatability and stability, ensuring consistent and reliable performance over an extended period. Optionally accompanied by an automatic cleaning brush, it effectively eliminates air bubbles that might otherwise interfere with accurate measurements. Additionally, it reduces the adverse effects of contamination on the measurement process, thereby prolonging the maintenance cycle. This enables the sensor to maintain excellent stability for long-term online use, functioning reliably without frequent disruptions or the need for excessive maintenance. Crucially, it can play a vital early warning role when it comes to oil pollution in water. It promptly detects the slightest presence of oil contaminants, allowing for prompt and appropriate remedial actions to be taken before the pollution escalates and causes significant damage to the aquatic environment.

Principe

The oil content in the water body was monitored by ultraviolet fluorescence method, and the oil concentration in the water body was quantitatively analyzed according to the fluorescence intensity of the oil and its aromatic hydrocarbon compound and the conjugated double bond compound absorbing ultraviolet light. The aromatic hydrocarbons in the petroleum form fluorescence under the excitation of ultraviolet light, and the value of the oil in the water is calculated according to the intensity of the fluorescence.

Feature

Digital sensor, RS-485 output, support MODBUS
Optional automatic cleaning brush to eliminate the impact of oil on the measurement
Eliminate the impact of ambient light on measurements with unique optical and electronic filtering techniques
It is not affected by suspended solids in water

Technical Specifications

Model	KWS-1000
Measuring Range	0-50ppm or 0-0.40FLU
Principle	fluorescence method
Resolution	0.01ppm
Accuracy	±3%F.S
The detection limit	According to actual oil sample
Linearity	R²>0.999
IP Grade	IP68
Max. depth	10m under water

Temperature Range	0~50℃
Output	RS485, Modbus
Installation	Submersible
Dimension	Φ45*175.8mm
Power Supply	DC5-12V, current<50mA (when not cleaning)
Cable Length	Standard 10m, customizable
Casing Material	316L (titanium alloy customizable)
Self-cleaning Function	Optional

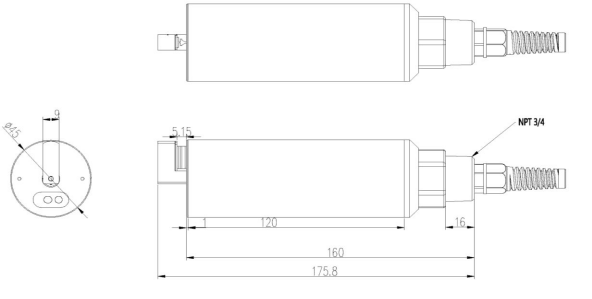

Dimension

RS485 output oil-in-water real-time monitoring sensor with grade IP68
