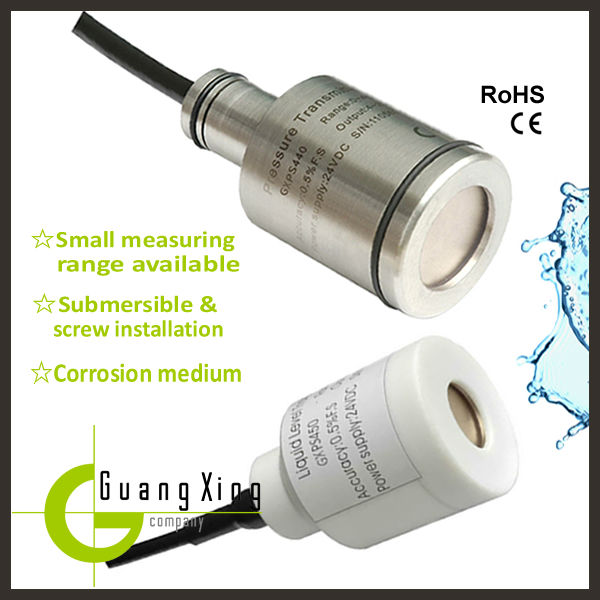

GXPS series water tank level controller system
Feature
Diffused-Silicon oil filled core
Seven kinds of structure to satisfy different users
Easy to use with submersible measuring
Multiple pressure range(1mH2O-500mH2O)
3 kinds Signal output(4-20mA, 0-5V, 0-10V)
2 wire and 3 wire connection selectable
Non-polar 2 wire system current output
lightning rating class A
Intrinsically safe explosion proof, Isolation explosion proof,
CE
Application field
Deep well level measuring
Hydrologic measurement for river, lake, sea
Sewage treatment
Muddy level measuring
Fluid reservoir level measuring
Water-saving irrigation
Circulating liquid consumption monitoring
Diversion works
Introduction
GXPS series liquid water tank level sensor normal level transmitter is a special structure and use of products, high precision, small size, good stability, which with abrasion, oil, acid and alkali resistant, high-intensity air conductivity cable to meet a variety of special-purpose level measurement site.Widely use sewage river water processing, ditch large rivers reservoir lakes coast geology hydrological monitoring
Passed the intrinsically safe mold, explosion proof certificate, and CE
Measuring various fluid for the user choice.
Electronic interface and signals definition
Parameter of GXPS series liquid water tank level sensor
| Spec. | Numerical value |
| Pressure range | 0~1..500mH2O , customizable |
| Overload pressure | 1.5times Rated pressure |
| Secondary containment | 3 times rated pressure |
| Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S selectable |
| Stability | Typical value: 0.1%F.S Max.: 0.2% F.S/year |
| Operating Temperature | -40°C~85°C(default) or -40 °C~125 °C |
| Compensation temperature | -10°C~70°C |
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L |
| Electrical properties | 2 line | 3 line |
| Output signal | 4~20mA | 0~5V | 0~10V |
| Power supplies | 24V (nominal)10~30Vdc | 24V (nominal)8~30Vdc/ac | 24V (nominal)11~30Vdc/ac |
| Load resistance | (U-10)/0.02(Ω) | more than 100kΩ |
| Insulation | more than 100MΩ@50V |
| Electrical Connections | waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 |

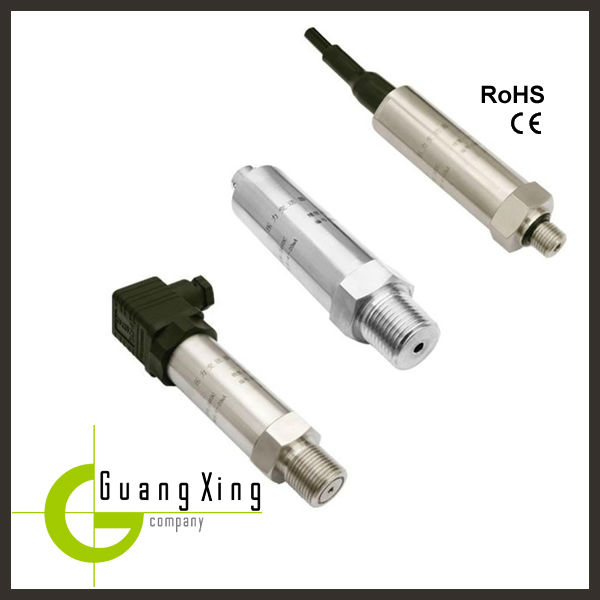

| Pressure interface | G1/4,Submersible type 1, Submersible type 2, Submersible type 3, Submersible type 4, Submersible type 5, Submersible type 6 |
| Response time | 10ms |
| Electric strength | 500Vac@1 second |
| Graduate Certificate Programs | certificate of explosion-proof, CE |
Ordering information of GXPS series liquid water tank level sensor
GXType-Range-Output-Accuracy-Power-Structure-Cable length-Package-Others
- Type: PS400 normal level transmitter
- Range: 1m.500m= the upper limitation of the range
- Output: A=4~20mA, V0=0~5Vdc. V1=0~10Vdc
- Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
- Power: 24VDC,
- Structure:S1 =universal type, S2=thread mounted, S3=Submersible & thread type, S4=Sediment prevention, S5=minor diameter, S6=antifouling, S7 =High density
- Cable length: XXm=XX meter 1-150m
- Package: Bb, Foam
- Others: C=common grade(-40°C~85°C) , A=advanced grade(-40 °C~125 °C)
In order to choose the suitable products for you, please send us below information with the feedback.
1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range
9.cable length
