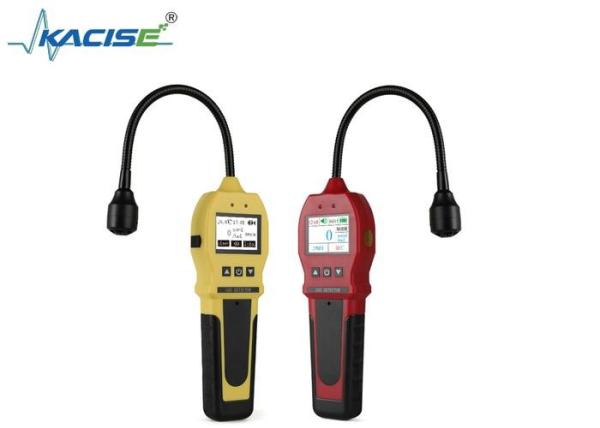

KLBH90E Oil Industry Gas Leak Detector
Introduction
The KLBH90E Oil Industry Gas Leak Detector is purpose - built for the oil industry. Leveraging LSI technology, it features an imported high - quality semiconductor FIGARO sensor and a 32 - bit built - in MCU. Measuring 210×66×30mm and weighing 300g, it’s portable. With natural diffusion sampling, it can detect combustible gases within 0 - 10,000ppm. The detector offers personalized alarm settings, with default low and high alarms at 500ppm and 2000ppm respectively. Its waterproof, dustproof, and explosion - proof design, along with a large LCD, ensures reliable operation in oil industry environments.
Product Features
*Natural diffusion sampling method and high-sensitivity sensor, with high s
*32-bit built-in MCU, high reliability and self-adaptation ability.
*Full functions, easy operation.
*Large LCD, more intuitionistic, abundant and clear indication.
*Compact design, easy carrying.
*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
Technical Parameters
| Target gas |
Combustible gas |
| Range |
0-10,000ppm (μmol/mol) |
| Sampling method |
Natural diffusion |
| Alarm point |
Default: Low alarm: 500ppm; High alarm: 2000ppm. |
| Support personalized setting. |
| Alarm types |
Audible buzzer alarm; Visual LED light alarm; Vibration alarm |
| Warm-up time |
60S |
| Response time |
＜30s |
| Sensor type |
Imported FIGARO sensor |
| Sensor life |
2 years |
| Power supply |
Rechargeable lithium battery, DC3.7V 1800mAH |
| Charging time |
6h-8h |
| Continuous working hours |
No less than 8 hours (normal working environment) |
| Working condition |
Temperature: -10～40℃ Humidity: ≤95% RH with no condensation. |
| Storage condition |
Temperature: -20～50℃ Humidity: ≤85% RH, avoid caustic gases or substances. |
| Weight |
Approx. 300g (excluding accessories) |
| Dimension |
Approx. 210mm(L)×66mm(W)×30mm(H) |
| Packing list |
Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card. |
