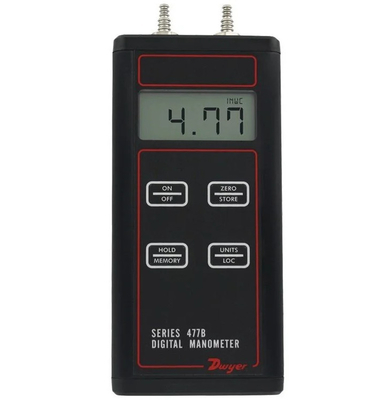

Dwyer 477B Series Handheld Digital Manometer Precise Air Pressure Measurement
Product Introduction
The Dwyer 477B Series Handheld Digital Manometer is a high - precision instrument for air pressure measurement, which is suitable for applications such as laboratory calibration and air - flow measurement in commercial buildings. The following is a detailed introduction:
Features
High - precision Measurement: It can measure positive pressure, negative pressure or differential pressure, with a full - scale accuracy of ±0.10% in the temperature range of 60 to 78°F (15.6 to 25.6°C), which is four times more accurate than most standard manometers.
Multiple Pressure Units: It supports up to seven common English and metric pressure units, and users can select them according to their needs without the need for unit conversion.
Data Storage Function: The manometer has a memory function that can store up to 40 readings, which is convenient for users to recall historical data and reduces the time for data recording.
Backlight and Hold Function: The backlight provides auxiliary lighting for use in dimly lit environments. The hold function can fix the current pressure value, which is convenient for users to read and record.
Over - pressure Alarm: It has visual and audible over - pressure alarms, which can remind users in time when the measured pressure exceeds the set range, ensuring the safety of the instrument and the measured system.
Technical Specs at a Glance
| Brand name | Dwyer |
| Model | 477B Series |
| Range | 0-20.00" w.c. |
| Service | Air and compatible gases. |
| Wetted Parts | Consult factory. |
| Accuracy | ±0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); ±1% of |
| full scale from 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C). |
| Pressure Hysteresis | ±0.1% of full scale. |
| Pressure Limits | See chart on catalog page. |
| Temperature Limits | 0 to 140°F (-17.8 to 60°C). |
| Display | 4-digit LCD (.425" H x .234" W digits). |
| Weight | 10.2 oz. (289 g). |
| Agency Approvals | CE |
