Dwyer 607-9 Differential Pressure Transmitter 0-25" w.c. ±0.5% Accuracy

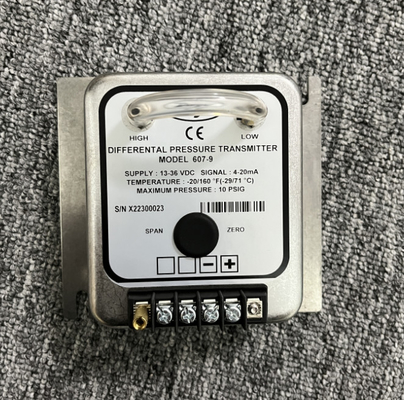

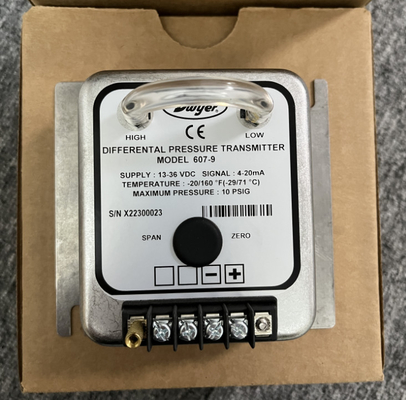

Dwyer 607-9 Differential Pressure Transmitter

Product Introduction

​

Product Introduction​

The Dwyer 607-9 is part of the Series 607 Differential Pressure Transmitters, designed for measuring differential pressure in air and compatible gases. It offers a measurement range of 0-25" w.c. with an accuracy of ±0.5%, making it suitable for demanding applications that require precise and reliable measurements.​

As a 2-wire device with a 4-to-20 mA output, it integrates easily into industrial control systems. The Series 607 transmitters are known for combining very low ranges with exceptional stability and reliability, and each unit comes with certification to NIST standards, ensuring measurement accuracy and traceability.​

Product Features​

Precise Measurement: The 607-9 model provides a measurement range of 0-25" w.c. with ±0.5% accuracy, meeting the requirements of demanding applications. The Series 607 as a whole offers ranges from 0-0.1" to 0-25" w.c. with either ±0.25% or ±0.5% accuracy.​

Stability and Reliability: Features an ultra-thin glass clad silicon diaphragm design that resists shock and vibration, practically eliminating drift, ensuring long-term stable performance.​

NIST Certification: Each unit includes certification to NIST standards, guaranteeing the accuracy and traceability of measurements.​

Durable Housing: Housed in a tough stainless steel casing with a NEMA 2 rating, protecting against moisture and dirt, suitable for various industrial environments.​

Medium Compatibility: Specifically designed for use with air and other compatible gases.​

Easy Integration: Adopts a 2-wire design with a 4-to-20 mA output, facilitating seamless integration into existing control systems.​

Product Parameters​

Model: 607-9​

Type: Differential Pressure Transmitter​

Measurement Range: 0-25" w.c. (Series 607 ranges from 0-0.1" to 0-25" w.c.)​

Accuracy: ±0.5% (Series 607 offers ±0.25% or ±0.5% accuracy)​

Output: 4-to-20 mA​

Wiring: 2-Wire​

Compatible Media: Air and compatible gases​

Diaphragm Design: Ultra thin glass clad silicon diaphragm​

Certification: NIST standards​

Housing Material: Stainless steel​

Protection Rating: NEMA 2​

Dwyer differential pressure transmitter

0-25 w.c. pressure sensor

high accuracy pressure transmitter

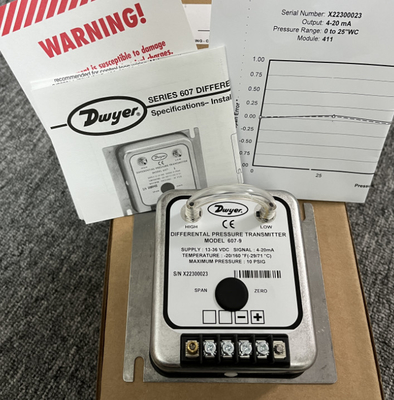

Dwyer 607-9 Differential Pressure Transmitter 0-25" w.c. ±0.5% Accuracy Images
