Household Ultrasonic Gas Meter KGD - USM - 442 - G1.6/2.5/G4

Name: Household Ultrasonic Gas Meter KGD USM 442 G1625G4
Brand: KACISE
Price: 1 USD

Brand Name : KACISE

Model Number : KGD-USM-442

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Interface Type : Threaded, M30

Accuracy Class : Class 1.5

Working Pressure : 0 - 20kPa

Working Temperature : -10 - 40°C

Storage Temperature : -20 - 60°C

Explosion - Proof Rating : ExibⅡBT4Gb

Contact Now

Household Ultrasonic Gas Meter KGD - USM - 442 - G1.6/2.5/G4

Product Introduction

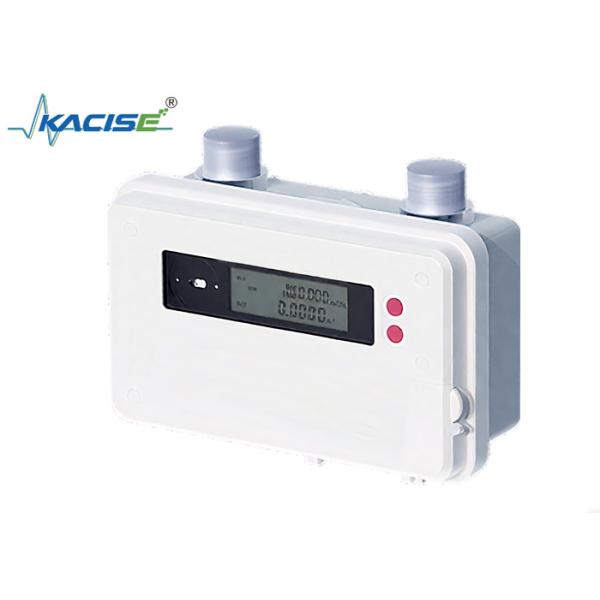

The household ultrasonic gas meter KGD - USM - 442 - G1.6/2.5/G4 is an intelligent measuring instrument. It uses the ultrasonic time - difference method and a unique new structure to measure the flow velocity of the medium, and is suitable for the flow measurement of natural gas.

Household Ultrasonic Gas Meter KGD - USM - 442 - G1.6/2.5/G4

Product Features

Small in size with stable metering performance
High sensitivity
High safety level
Long service life and maintenance - free
Strong expandability

Technical Parameters

Item	Details
Measuring Range (mATRS/h)	KGD-USM-442-G1.6: 0.016 - 2.5
	KGD-USM-442-G2.5: 0.025 - 4
	KGD-USM-442-G4: 0.04 - 6
Interface Type	Threaded, M30
Dimensions (mm)	230.513089.5
Power Supply Method	Specification 1: 4 AA alkaline batteries
Power Supply Method	Specification 2: 2 ER26500/3.6V batteries
Accuracy Class	Class 1.5
Measurement Error	Minimum flow ≤ Q < Demarcation flow: ±3%
Measurement Error	Demarcation flow ≤ Q ≤ Maximum flow: ±1.5%
Working Pressure	0 - 20kPa
Working Temperature	-10 - 40°C
Storage Temperature	-20 - 60°C
Explosion - Proof Rating	ExibⅡBT4Gb
Protection Rating	IP65
